• 20" x 8" aluminum wheels
• P275/60R20 all-season BSW tires
• (4) full-size conventional doors
• Locking lug nuts
• 17" steel spare wheel
• Full-size temporary use spare tire
• Tire carrier winch
• Black front bumper
• Front bumper sight shields
• Body-color rear bumper w/step pads
• Body-color front fascia
• Front wheel spats
• Rear wheel spats
• Body-color grille
• Automatic headlamps
• Quad beam halogen headlamps
• Fog lamps
• Cargo lamp
• Black fold-away pwr heated exterior mirrors
• Tinted windows
• Tinted windshield glass
• Fixed rear window
• Variable intermittent windshield wipers
• Black door handles
• Front license plate bracket
• Locking tailgate

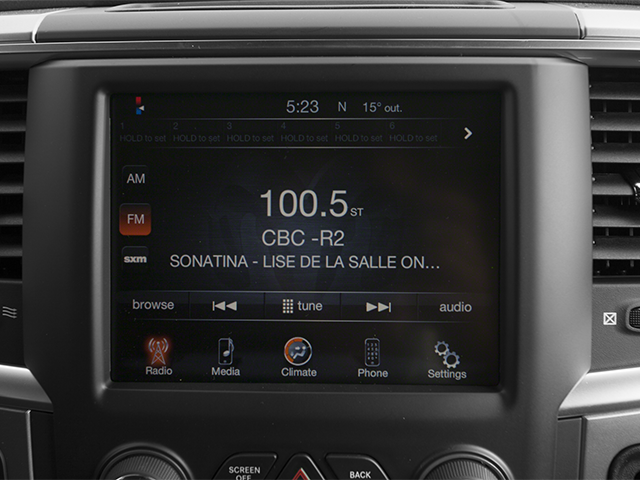

• Uconnect 3.0 -inc: AM/FM stereo
• (6) speakers
• Fixed long mast antenna

• HD vinyl 40/20/40 bench seat w/manual adjusters
• Folding rear bench seat

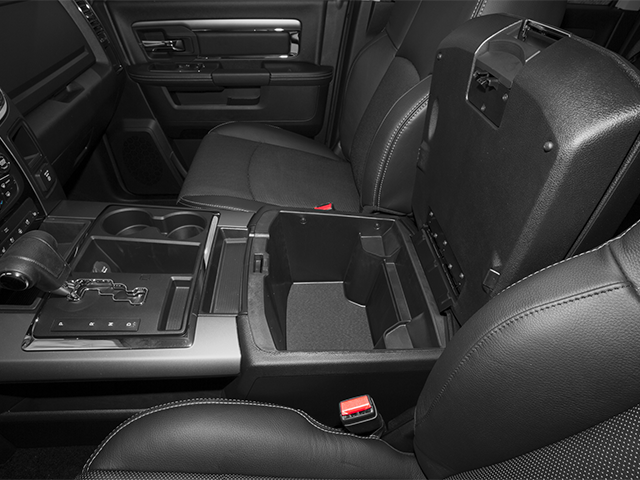

• Front armrest w/(3) cupholders
• Carpeted floor covering
• Front/rear floor mats
• Floor tunnel insulation
• Tilt steering column

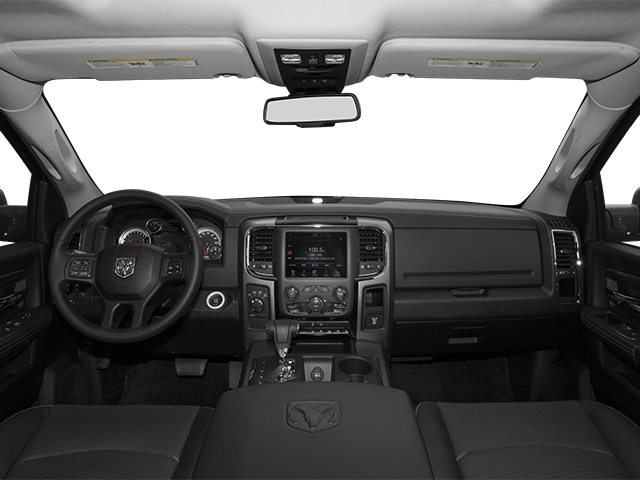

• Instrument cluster w/display screen -inc: vehicle info center
• Speed control

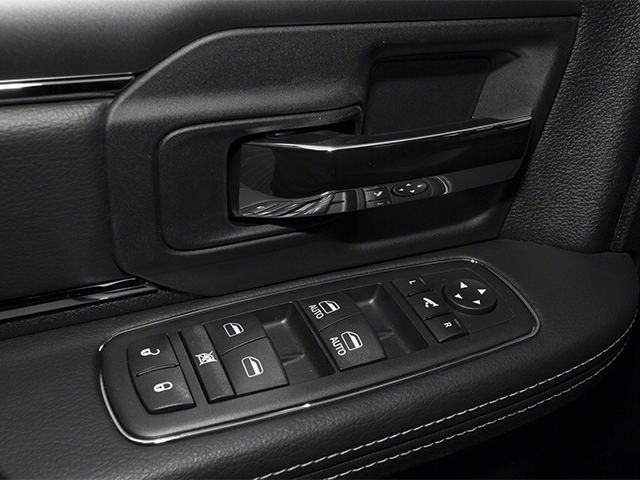

• Pwr front windows w/1-touch up/down
• Pwr door locks
• Pwr accessory delay
• Sentry Key theft deterrent system
• Air conditioning
• Black instrument panel bezel
• 12V aux pwr outlet
• Base door trim
• Day/night rearview mirror
• Assist handles
• Rear dome lamp

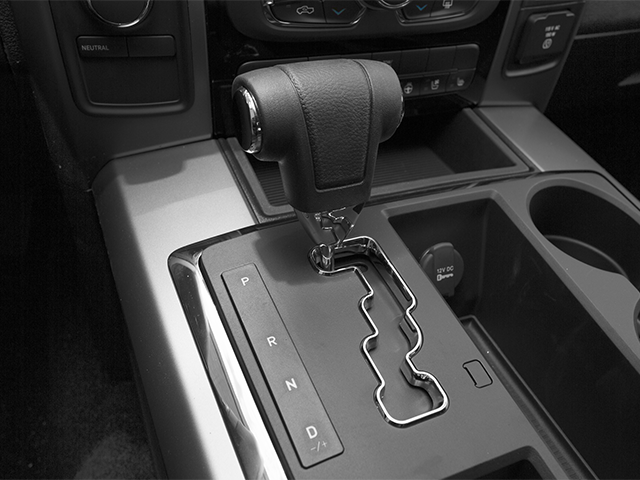

• Column-mounted shifter
• Rear under seat storage compartment
• Storage tray
• 2nd row in-floor storage bins

• Electronic stability control
• Driver/front passenger multistage airbags
• Front seat side-impact airbags
• Front/rear side curtain airbags
• Front seat belt height adjusters
• Child safety door locks
• Tire pressure monitor w/display
• Dual note horn

Additional Packages

• 25C

• AJY
• AV2
• DG1
• DSA
• EZH-F
• WP2
• XF9
• XN8

• Mileage
• Fuel Economy Est-Combined (MPG): - TBD -
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - Hwy (MPG): 20
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Maximum Alternator Capacity (amps): 180
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 14.000
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3700
• Gross Axle Wt Rating - Rear (lbs): 3900
• Curb Weight - Front (lbs): 2805.6
• Curb Weight - Rear (lbs): 2295.5
• Gross Vehicle Weight Rating Cap (lbs): - TBD -
• Gross Combined Wt Rating (lbs): 14150
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 8800
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 880
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): - TBD -
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): - TBD -
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Link Coil
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Rear: Solid
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Rear: 3.550
• Shock Absorber Diameter - Front (mm): N/A
• Shock Absorber Diameter - Rear (mm): N/A
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.200 x 1.100
• Rear Brake Rotor Diam x Thickness (in): 13.800 x 0.900
• Tires
• Front Tire Order Code: TTN
• Rear Tire Order Code: TTN
• Spare Tire Order Code: TBS
• Front Tire Size: P275/60R20
• Rear Tire Size: P275/60R20
• Spare Tire Size: Full-Size
• Front Tire Capacity (lbs): N/A
• Rear Tire Capacity (lbs): N/A
• Spare Tire Capacity (lbs): N/A
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 20 x 8.0
• Rear Wheel Size (in): 20 x 8.0
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr rack & pinion
• Steering Ratio (:1), On Center: Variable
• Steering Ratio (:1), At Lock: 17.900
• Turning Diameter - Curb to Curb (ft): 44.900
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder Type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26.000
• Fuel Tank Location: Inboard Frame Rails
• Exterior Dimensions
• Wheelbase (in): 140.500
• Length, Overall w/o rear bumper (in): 229.000
• Width, Max w/o mirrors (in): 79.400
• Height, Overall (in): 75.100
• Overhang, Front (in): 40.000
• Overhang, Rear w/o bumper (in): 48.400
• Front Bumper to Back of Cab (in): 152.600
• Cab to Axle (in): 28.000
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.600
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.600
• Ground Clearance, Rear (in): 9.000
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 67.400
• Cargo Box Width @ Top, Rear (in): 66.400
• Cargo Box Width @ Floor (in): 66.400
• Cargo Box Width @ Wheelhousings (in): 51.000
• Cargo Box (Area) Height (in): 20.000
• Tailgate Width (in): 60.400
• Cargo Volume (ft³): 50.300
• Ext'd Cab Cargo Volume (ft³): 52.400
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.000
• Front Leg Room (in): 41.000
• Front Shoulder Room (in): 66.000
• Front Hip Room (in): 63.200
• Second Head Room (in): 39.900
• Second Leg Room (in): 40.300
• Second Shoulder Room (in): 65.700
• Second Hip Room (in): 63.200
• Summary

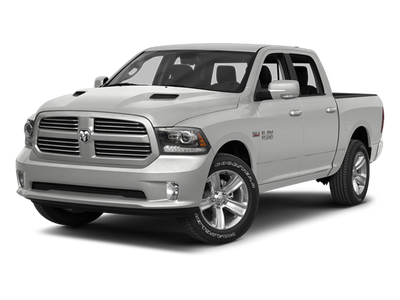

• Vehicle Name: Ram 1500
• Body Style: Crew Cab Pickup
• Body Code: 140.5" WB
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
